Front seat heater Moskvich M3 (1 mode)

Purpose:

The installation kit “Moskvich M3” is a single-mode, built-in seat heater designed for installation under the upholstery in the front standard factory seats of the Moskvich M3 vehicle.

The main purpose of the heater is to increase the comfort of the vehicle by heating the seat cushion area during the cold season.

Package contents:

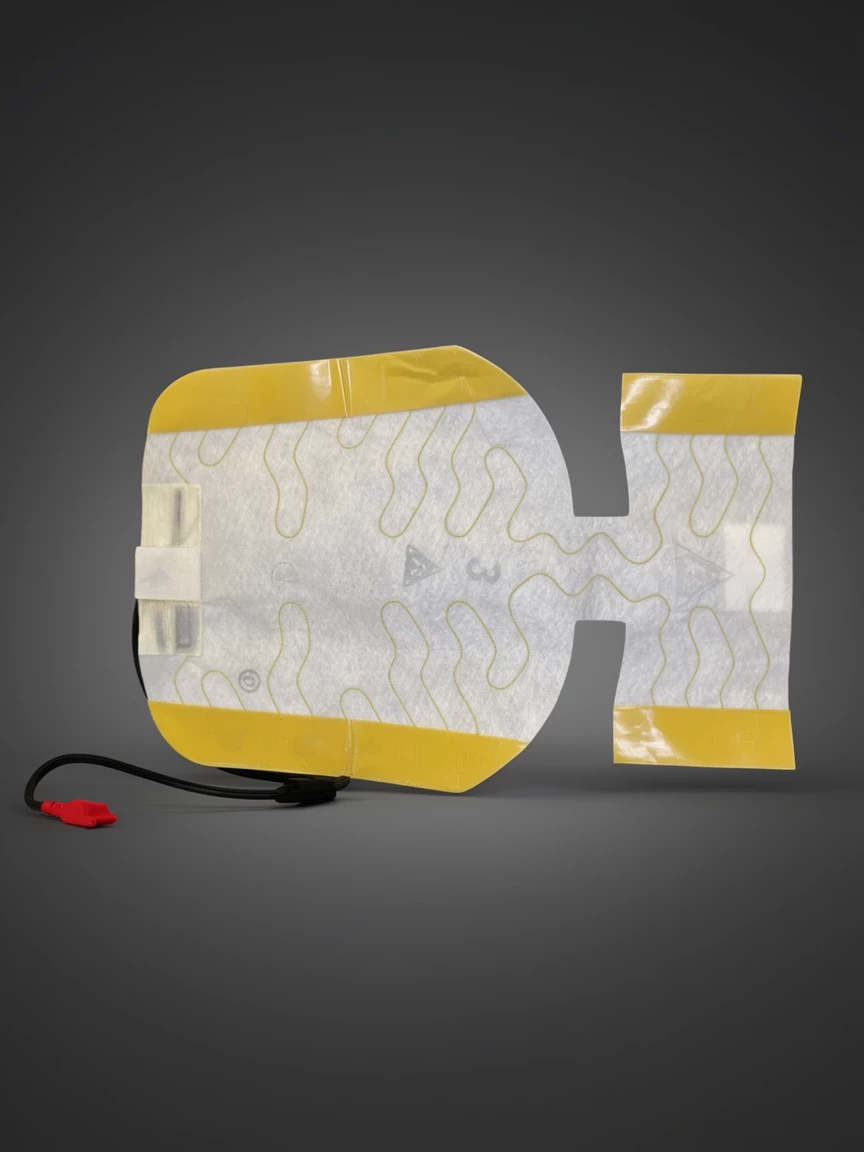

The seat heater kit includes:

• cushion element,
• backrest element,
• main power harness for connection to the vehicle's onboard network with alternative (non-factory) compact control buttons.

Description and design features:

The heater is manufactured in accordance with the technical requirements of vehicle manufacturers: power, heating temperature, electrical safety, and component materials.

Each product undergoes 100% inspection for compliance with technical parameters (circuit resistance, current consumption, and thermal relay cycling).

A resistive multi-core wire consisting of twisted conductors individually coated with electrical insulating varnish is used as the heating core of the heater.

The cushion and backrest elements operate simultaneously in a series connection scheme from the 12V power circuit.

The heater design includes a thermal relay to protect against overheating and maintain the set temperature.

The heaters are fixed to the seat foam using double-sided adhesive tape applied to the elements.

To connect the heater to the main circuit, a universal power harness with an alternative, single-mode control button is used, which has light indicators: illumination of the seat heating symbol and an ON mode indicator.

The control button is intended to turn the heater on/off and is installed in pre-cut openings in a location convenient for the user: on the seat, armrest, console, or dashboard.

The main power harness can be adjusted in length by the installer without disturbing the connection scheme.

Note:

These cushion and backrest elements used as a pair can be used instead of the standard Moskvich M3 heaters, and it is also permitted to connect them to the standard heating wiring, taking into account the connection scheme of the supplied elements.

Not allowed:

• to violate the supplied heater configuration, as changes in the design are possible,
• to use the "cushion" or "backrest" elements separately to replace standard heaters,
• to violate the element connection scheme,
• to puncture the seat with the heater using cutting or piercing objects,
• to leave the product switched on unattended.
