Front Seat Heater for Lada Kalina-2

Purpose:

The installation kit "Emelya UK-Lada Kalina-2" is a single-mode built-in seat heater designed for under-upholstery installation in the front standard factory seats of the Lada Kalina-2 vehicle.

The main purpose of the heater is to increase vehicle comfort by heating the seat seating area during the cold season.

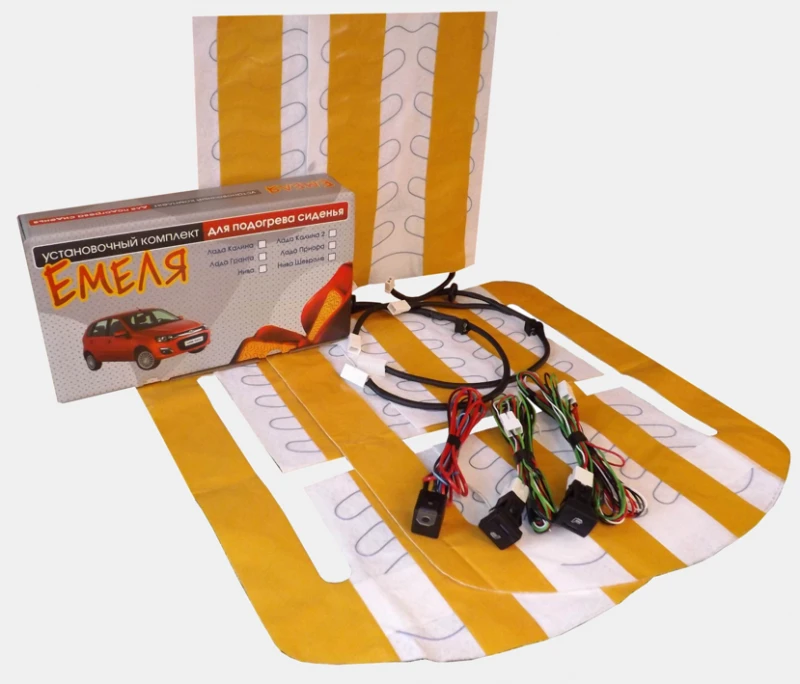

Kit contents:

The seat heater kit includes:

• cushion element - 2 pcs.,
• backrest element - 2 pcs.,
• main power harness for connection to the vehicle electrical system, control buttons.

Description and design features:

The heater is manufactured in accordance with the technical requirements of the AVTOVAZ / RENAULT-NISSAN automakers: regarding power, heating temperature, electrical safety and component materials.

Each product undergoes 100% inspection for compliance with technical parameters (circuit resistance, current consumption and thermal relay cycling).

A resistive multi-core wire consisting of twisted conductors individually coated with electrical insulating varnish is used as the heating core of the heater.

The cushion and backrest elements operate simultaneously in a series connection circuit from a 12V power supply.

The heater design includes a thermal relay to protect against overheating and maintain the set temperature.

The heaters are fixed to the seat foam using double-sided adhesive tape applied to the elements.

A universal power harness with an alternative single-mode control button is used to connect the heater to the main circuit; the button has light indicators: an outline illumination of the seat heating symbol and an ON mode indicator.

The control button is intended for turning the heater ON/OFF.

The main power harness can be adjusted in length by the installer without disturbing the connection diagram.

Note:

These cushion and backrest elements can be used in pairs instead of the standard heaters of the Lada Kalina-2, and it is also permitted to connect them to the standard heating wiring, taking into account the connection diagram of the supplied elements.

Not allowed:

• to violate the supplied heater kit, as design changes are possible,
• to use the "cushion" or "backrest" elements separately to replace standard heaters,
• to violate the element connection diagram,
• to puncture the heated seat with cutting or piercing objects,
• to leave the product switched on unattended.
